• 50 tie-point distribution strips providing 2 power rails.
• White ABS plastic body with color printed legend.
• Contacts are Phosphor Bronze with Plated Nickel Finish, rated for 50,000 insertions.
• Rated at 36 Volts, 2 Amps.
• Insertion Wire Size is 21 to 26 AWG, 0.016 to 0.028 inches diameter (0.4 to 0.7mm diameter)
• Peelable adhesive tape backing provided for attaching to a surface.
• Size: 3.3 x 0.35 x 0.33in (84.0 x 9.0 x 8.5mm)

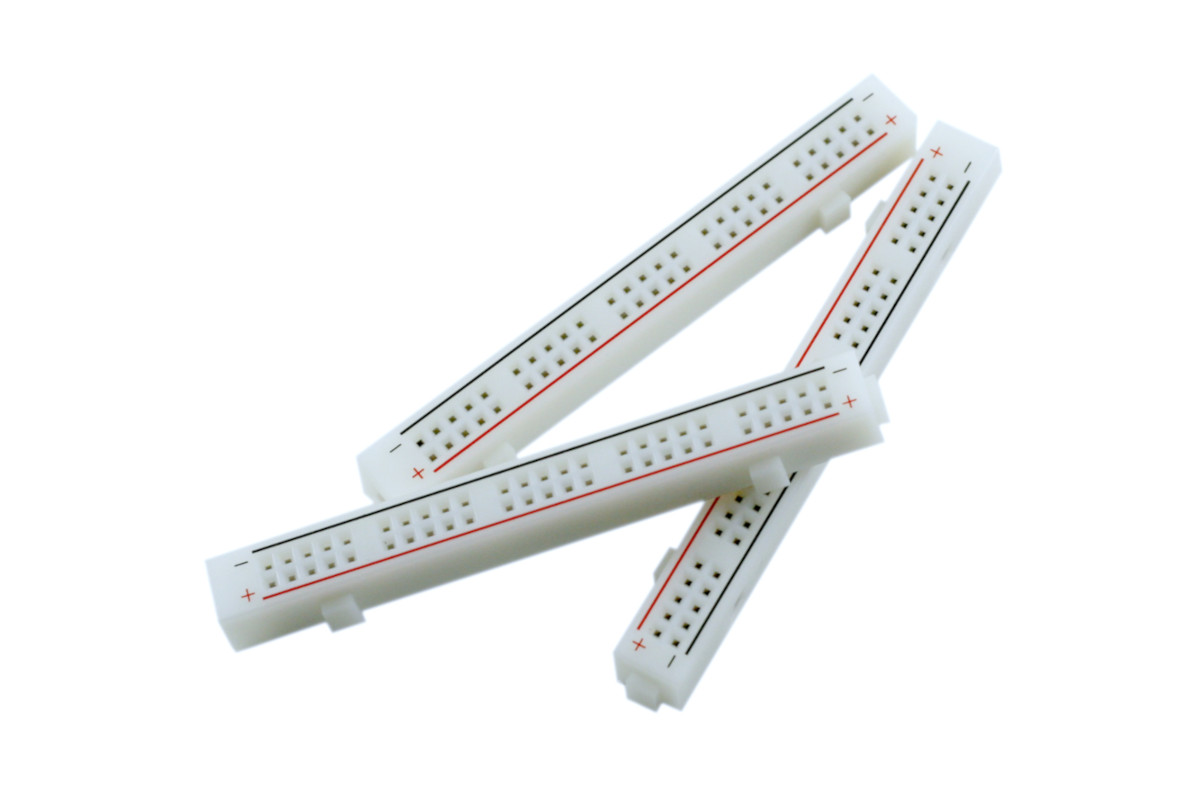

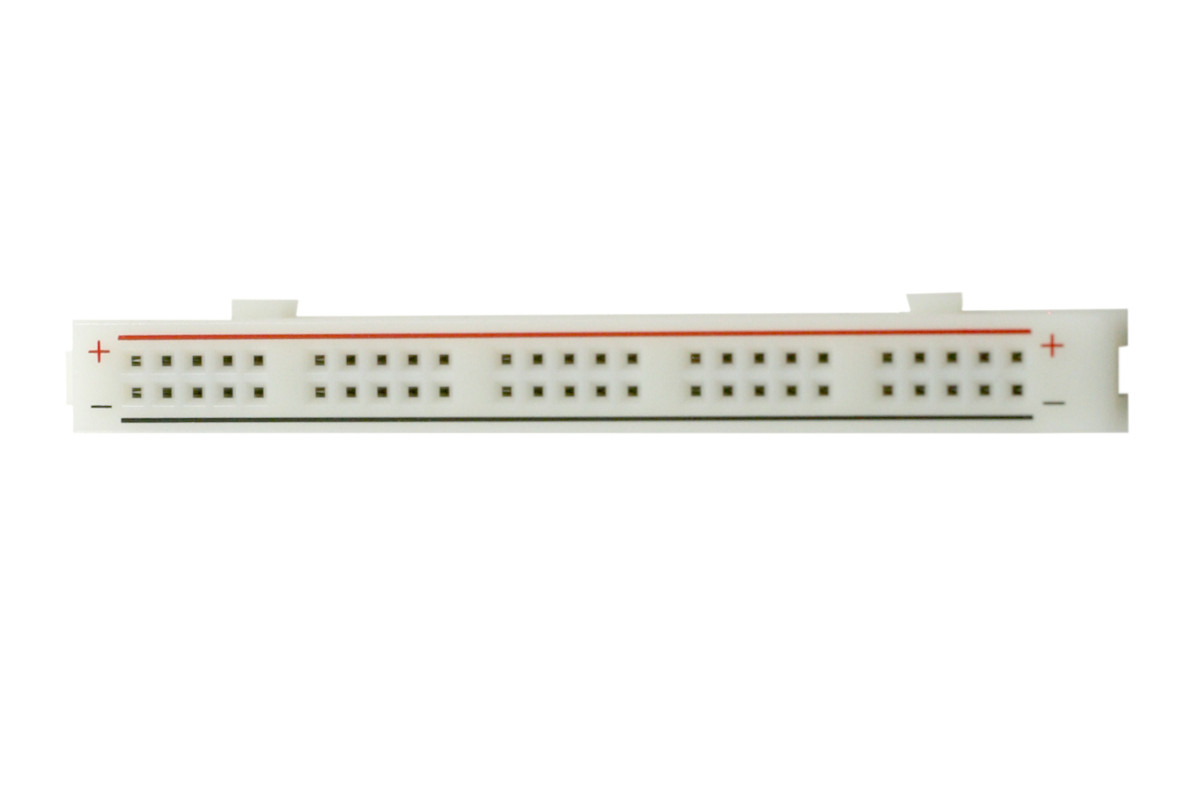

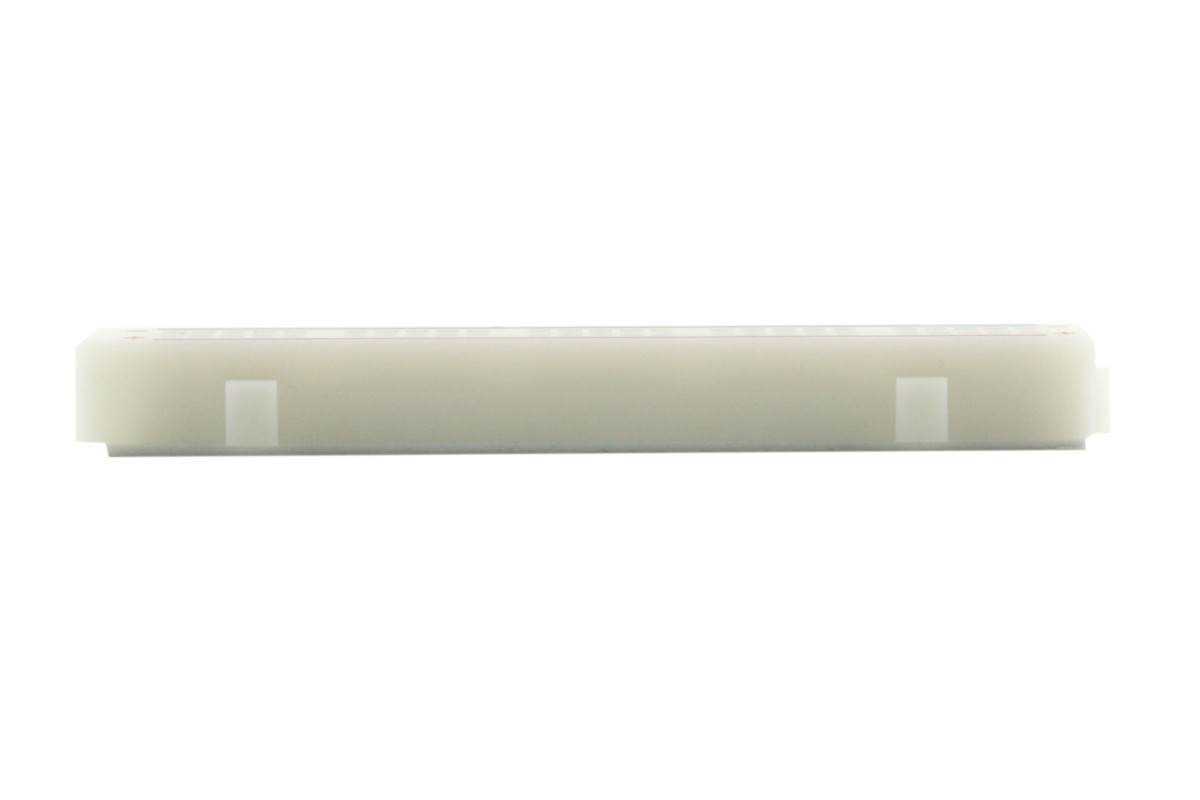

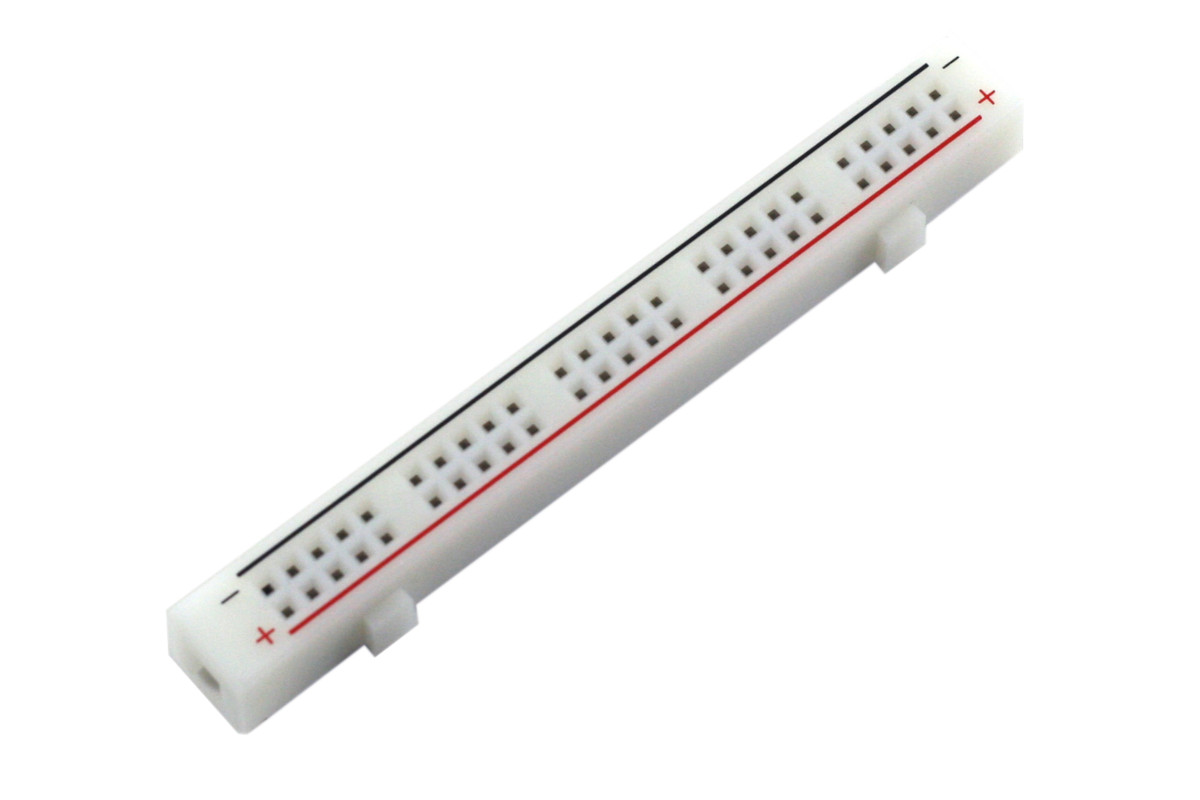

BB50R is a solderless (plug-in) breadboard with 50 connection tie-points (i.e. wire insertion holes) as two 25 tie-point power rails. Solderless breadboards are great for building and testing new circuits because parts can be easily inserted and removed. They are completely re-usable. The housing is made of white ABS plastic, with a printed color legend. The internal contacts are phosphor bronze with a plated nickel finish. A peelable adhesive tape backing is provided for attaching it to a surface. BPS BreadBoards are Lead-Free and RoHS Compliant.
